Most Common Service Lights on Your Dashboard & How to Solve Them

Whether you are commuting on Highway 99W or heading out for a weekend getaway near the Willamette River, nothing disrupts a drive through Forest Grove quite like a sudden glow on your instrument panel.

Modern Ford vehicles, from the rugged F-150 to the nimble Escape, are equipped with onboard diagnostics designed to communicate exactly how your vehicle is feeling.

However, understanding dashboard indicator lights meanings can sometimes feel like trying to read a different language. Ignoring these indicators can lead to costly repairs or even leave you stranded on the side of the road.

At Doherty Ford, we want to ensure you stay safe and informed. This comprehensive guide breaks down the most common car dashboard warning lights, what they mean, and exactly how to address them right here in Forest Grove.

Understanding the Universal Dashboard Color Code

Before diving into specific symbols, it helps you to understand that your dashboard lights follow a strict color-coded system, much like a traffic light. The color tells you the urgency of the issue:

·         Green or Blue: These are not warning lights; they are status indicators. They simply let you know a system is actively working, such as your high beams or cruise control.

·         Yellow or Orange: These indicate a non-emergency issue or a system failure that requires attention soon. You can typically drive to a service center, but you shouldn't delay getting it checked.

·         Red: This indicates a serious, potentially dangerous issue or a critical component failure. If a red light illuminates or flashes, pull over safely as soon as possible and turn off the engine.

Critical Red Warning Lights

When a red indicator appears, it demands immediate attention. Here are the most critical red car dashboard warning lightsyou might encounter in your Ford:

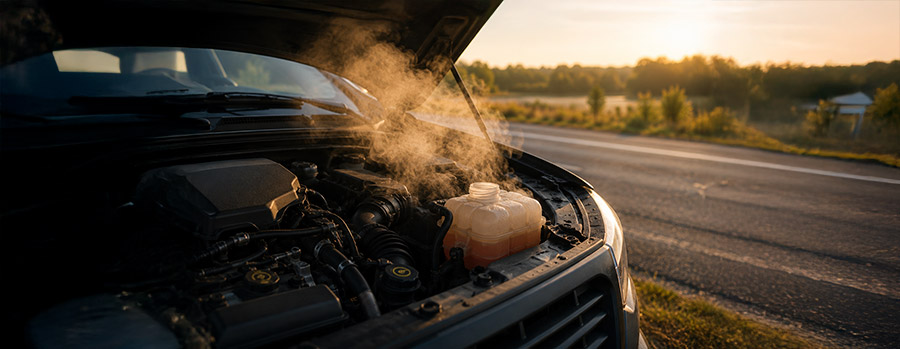

1. Engine Coolant Temperature Warning

What it looks like: A thermometer floating in liquid.

What it means: Your engine is overheating. This could be due to a coolant leak, a broken radiator fan, or a failing water pump.

Pull over safely off the road immediately. Turn off the engine and let it cool down for at least 20 to 30 minutes. Never attempt to open the radiator cap while the engine is hot, as pressurized, boiling coolant can cause severe burns.

Check your coolant reservoir levels once cooled and call for a tow to Doherty Ford to avoid catastrophic engine warping.

2. Oil Pressure Warning Light

What it looks like: An old-fashioned oil can with a dripping drop.

What it means: Your engine has lost oil pressure. Without proper lubrication, your engine's metal components will grind together, causing irreversible engine failure within minutes.

Safely pull over and shut down the vehicle right away. Use the dipstick to check your engine oil level. If it is low, adding oil may temporarily resolve the issue, but if the light stays on after adding oil, do not restart the vehicle. Contact a towing service immediately.

3. Charging System (Battery) Warning Light

What it looks like: A standard car battery symbol with a plus (+) and minus (-) sign.

What it means: Your car's electrical system is no longer receiving power from the alternator, meaning the vehicle is running purely on battery power.

Turn off all unnecessary electrical loads, such as the air conditioning, radio, and heated seats, to preserve remaining battery life. Drive directly to a local service center if you are close by; otherwise, pull over before the battery drains completely and the vehicle dies.

Persistent Yellow Indicator Lights

Yellow or orange dashboard lights signify issues that require professional diagnosis but generally allow you to complete your current trip safely.

1. The Infamous Check Engine Light

What it looks like: An engine silhouette. It may display text like "CHECK ENGINE" or "SERVICE ENGINE SOON."

What it means: The vehicle’s engine control unit (ECU) has detected a malfunction in the emission control or powertrain system. It can be triggered by something as minor as a loose gas cap or as serious as a failing catalytic converter.

First, pull over and check if your gas cap is securely tightened; a loose cap can disrupt system pressure and trigger the light, which may take a few drive cycles to clear. If the light remains steady, schedule an inspection. Note: If the check engine light is flashing rapidly, this indicates a severe engine misfire that can destroy your catalytic converter—pull over and stop driving immediately.

2. Tire Pressure Monitoring System (TPMS)

What it looks like: An exclamation point inside a horseshoe-shaped tire cross-section.

What it means: At least one of your tires is significantly under-inflated or over-inflated. In Oregon, sharp seasonal temperature changes can alter tire pressure drastically overnight.

Check the recommended PSI numbers on the placard inside the driver’s side door jamb (do not rely on the maximum PSI listed on the tire itself). Measure and adjust your tire pressure accordingly. If the light flashes for a minute before staying solid, your TPMS sensor itself may need replacement.

3. Powertrain Fault / Wrench Light

What it looks like: A mechanical wrench icon.

What it means: This is a Ford-specific indicator indicating a powertrain fault, an issue with the automatic transmission, or a problem with the electronic four-wheel-drive system.

The vehicle may enter a "limp mode" to protect itself, reducing maximum engine speed. Avoid heavy acceleration or towing and bring your vehicle in for an electronic diagnostic scan as soon as possible.

The Everyday Car Dashboard Warnings

Not all dashboard notifications require a mechanical overhaul. Simple behavioral indicators are designed to prevent convenience issues, such as a dead battery or an unlatched door.

The car lights on warning indicator typically features a small icon resembling a headlight with rays projecting outward. If this light remains on after you exit your vehicle, it serves as a reminder that your exterior parking lights or headlights are manually turned on.

Modern Fords featuring an "Auto" setting on the headlight dial will manage this automatically, but if you've bumped the dial into manual mode, leaving the lights on can completely drain your battery while you sleep. Always ensure your headlight switch is turned to the automatic position or fully off before walking away from your car.

Expert Diagnostics at Doherty Ford

When it comes to dissecting dashboard indicator lights, guessing can lead to unnecessary stress or unexpected repair bills. Many independent shops use generic code readers that only provide a surface-level diagnostic code.

Our factory-trained technicians utilize specialized Ford diagnostic equipment designed to read proprietary factory codes, allowing us to pin down the precise root cause immediately. Whether you need a simple battery replacement, a tire patch, or an advanced engine diagnostic, our team is equipped to handle it efficiently.

Don't ignore the warning signs your Ford is giving you. If a dashboard light has appeared on your panel, protect your vehicle's health and longevity by scheduling a professional check-up.
